Aftermarket replacement fitting selected make model and year

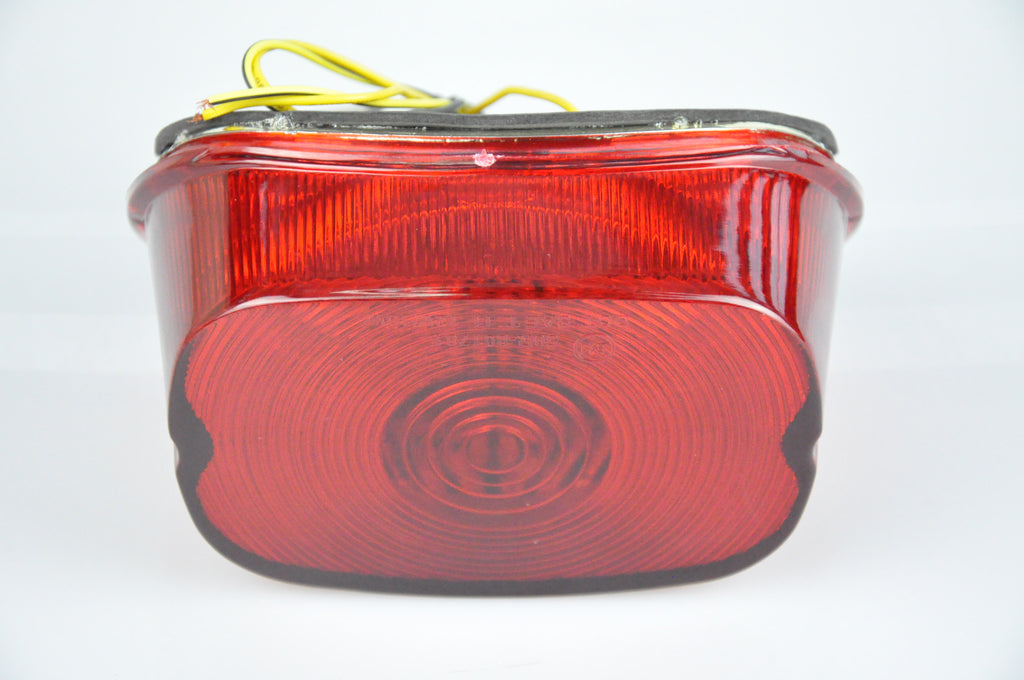

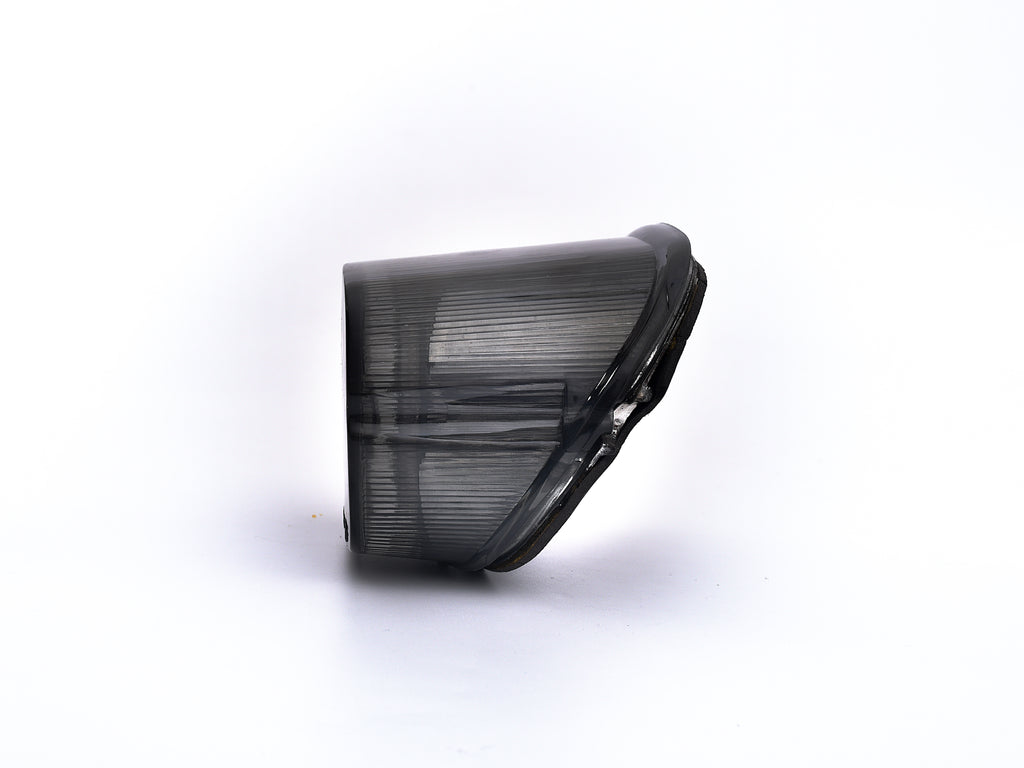

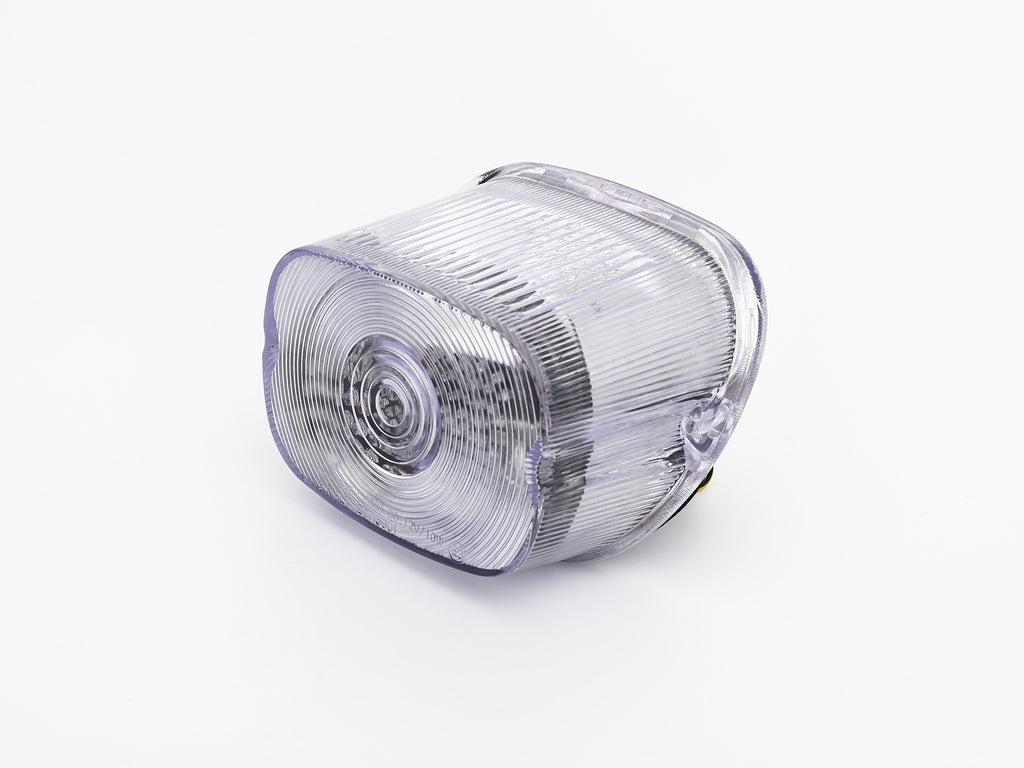

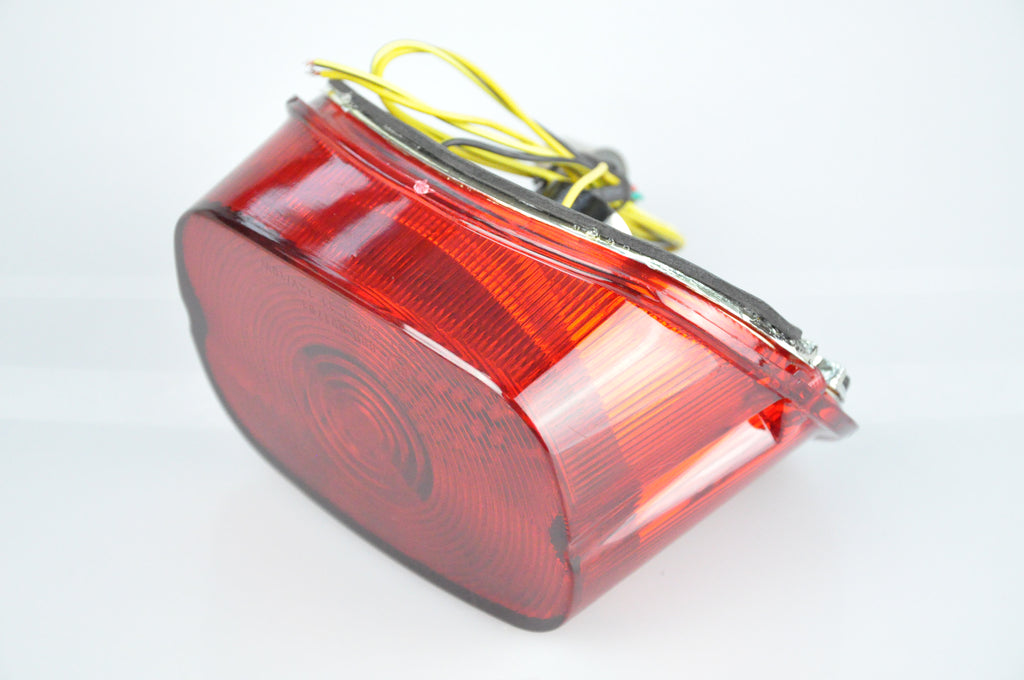

Low-Profile Led Taillight - with No Tag Light
Manufactuer Number:68140-04
99-03 FLHTC 1DJV ELECTRA GLIDE CLASSIC;
11 FLHTC 103 1FFM ELECTRA GLIDE CLASSIC;
07-08 FLHT 1FV4 ELECTRA GLIDE STANDARD;
99-06 FLHT 1DDV ELECTRA GLIDE STANDARD;
04-06 FLHRSI 1FYW ROAD KING CUSTOM;
03 FLHRSEI2 1PGE CVO ROAD KING;
02 FLHRSEI 1PDC CVO ROAD KING;
07 FLHRS 1FY4 ROAD KING CUSTOM;
04-06 FLHRS 1FXV ROAD KING CUSTOM;
00-06 FLHRI 1FBW ROAD KING;
99-06 FLHRCI 1FRW ROAD KING CLASSIC;
12-13 FLHRC 1FRM ROAD KING CLASSIC;
07-11 FLHRC 1FR4 ROAD KING CLASSIC;
11 FLHRC 103 FRM ROAD KING CLASSIC;
99-06 FLHR 1FDV ROAD KING 2005;
07-08 FLHR 1FB4 ROAD KING;
02-06 FLHPI 1FHW ROAD KING POLICE;
02-06 FLHPEI 1FTW ROAD KING POLICE ESCORT;
07-11 FLHPE 1FTM ROAD KING POLICE;
19-22 FLHP 1FHP ROAD KING POLICE;
07-16 FLHP 1FHM ROAD KING POLICE;
17-18 FLHP 1FHC ROAD KING POLICE;
18 FLHCS ANV 1YPK HERITAGE CLASSIC 114 ANNIVERSARY;
18-22 FLHCS 1YBK HERITAGE CLASSIC 114;
18-21 FLHC 1YAJ HERITAGE CLASSIC; For Harley with conventional "squareback" taillights and tag above taillight (except w/ bobbed fenders)
Available taillight options:
(INT) LED Tail light with integrated turn signals
https://www.youtube.com/watch?v=6yRTmksJT9Q
(ITU) LED Flashing Brake light with integrated signals
https://www.youtube.com/watch?v=BSaRurv5k3E
(SQL) Sequential LED Tail Light with integrated signals
https://www.youtube.com/watch?v=88cAfOBNVYs
Advantages:
- With high-density Led configuration ensuring optimal visibility
- Free Shipping to domestic addresses
- We dispatch Our Order within 1 working day( Monday-Friday, Excl. holidays）
- Warranty: 6 months/ Return: 30days
Taillight Installation Guide: Please Read Before Purchase
While we don’t have model-specific instructions, we’ve outlined general wiring steps to help you install your new taillight seamlessly. If you encounter any issues, feel free to reach out to us.
1. Running and Brake Light Functions:

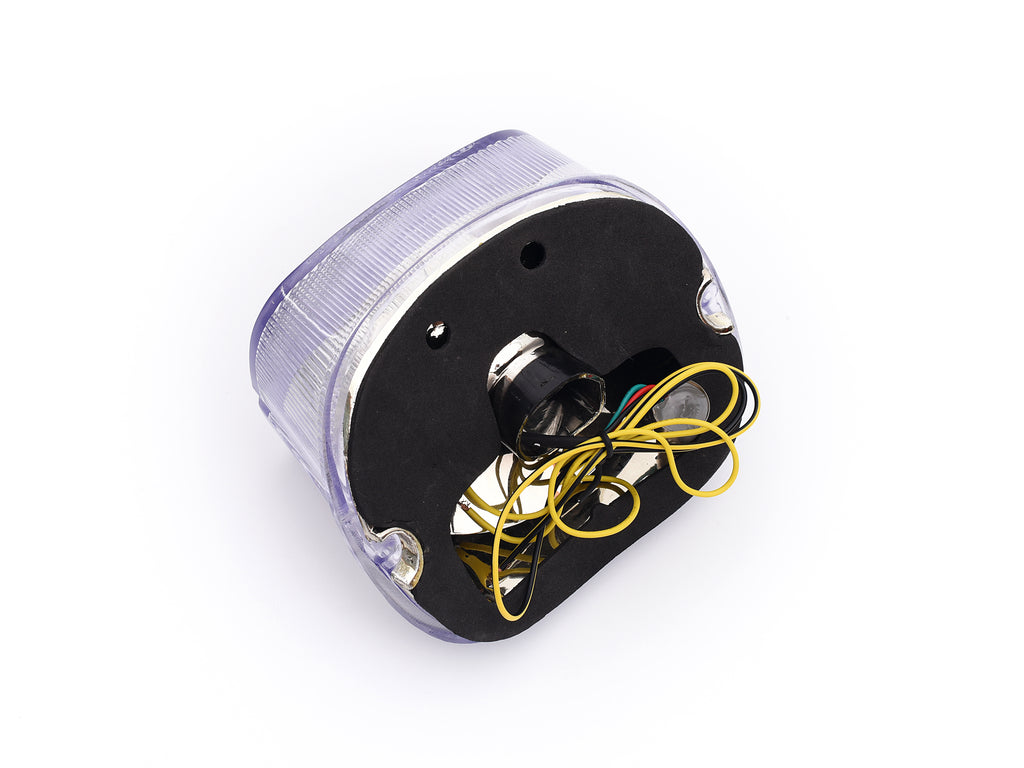

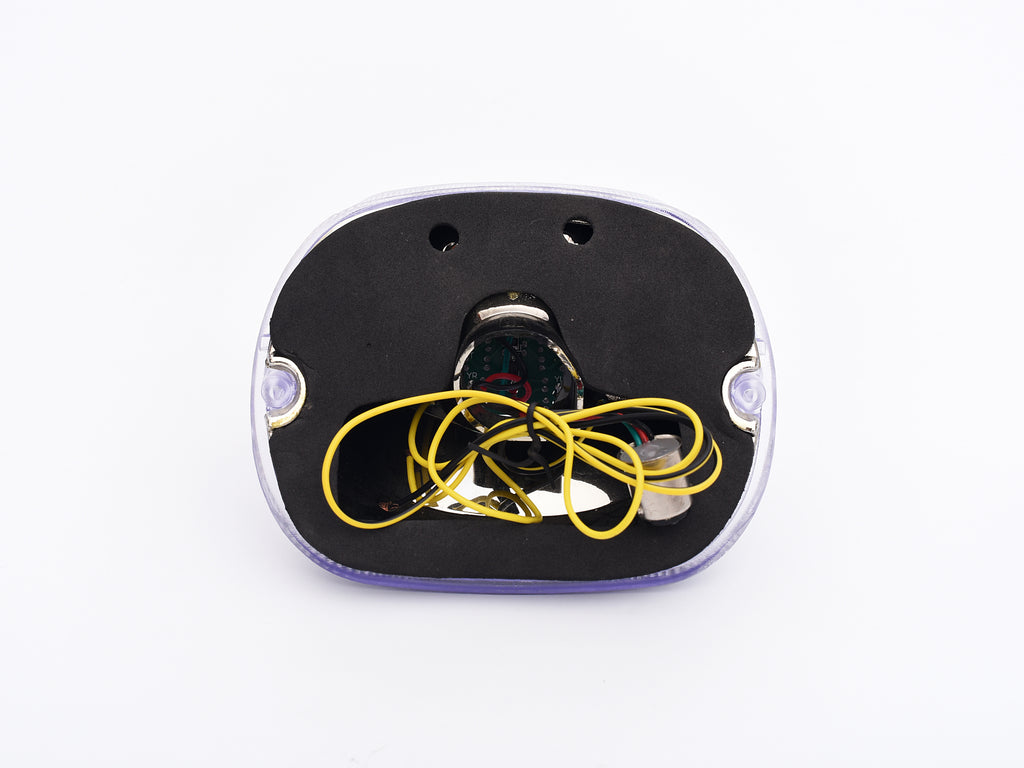

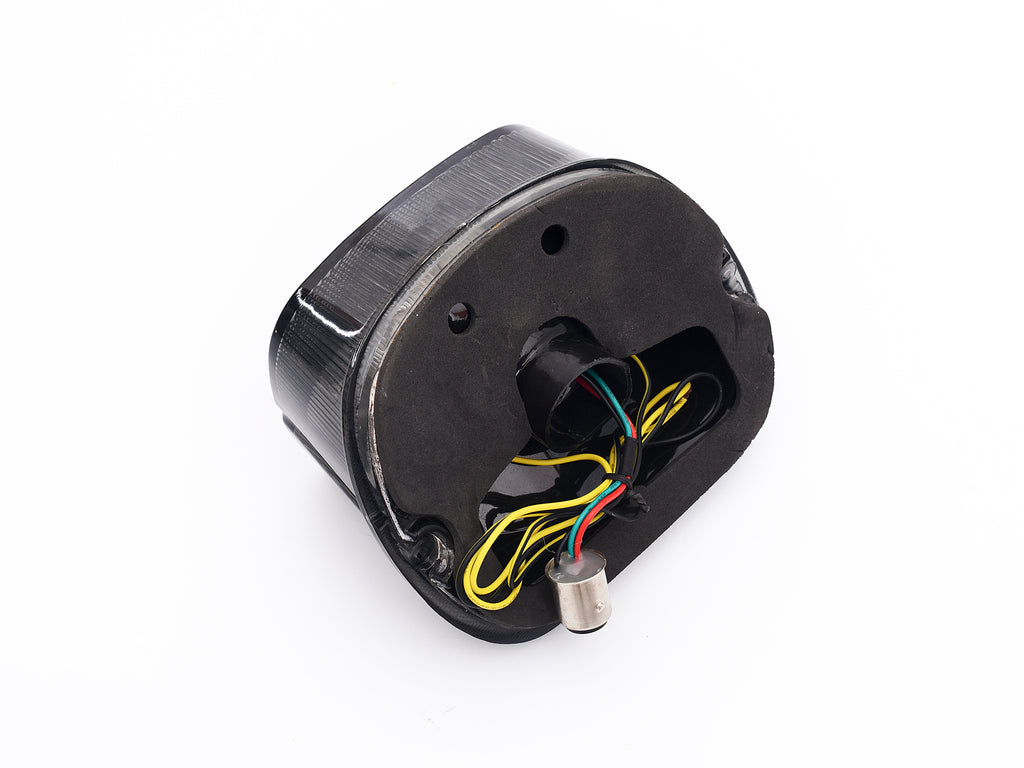

The process is typically plug and play. Most of our LED lights are equipped with OEM plugs. However, some older versions feature 1157 types of dual contacts bulb socket (refer to the pictures in the listing for identification), offering a direct replacement for your existing bulb. In the case that the socket doesn’t fit certain newer models, you’ll need to swap it out with the bike’s factory connector.
Wiring color reference:
Black wire: Negative (Ground)
Red wire: Running Light
Green wire: Brake Light
2. Turn Signals Activation:
Connect the yellow wire (or yellow & black wire) to the positive wires of your bike’s left and right turn signals to activate the built-in turn signals.
If additional black wires are provided, always connect them to the ground wires.
3. (Optional) Dealing with Error Codes or Alerts:
If switching from an incandescent bulb to an LED taillight, you may encounter error codes, rapid blinking, or static amber lights, these are common due to the low current of LED lights. So, we need to increase the current. Fix this by adding provided resistors into the circuit in parallel connection with the taillight (using the included diagram as a guide).
For certain models, an LED replay may be included instead of resistors, in such cases, simply replace the stock relay with the provided LED replay.
**Useful Tips in Installation:
If the light doesn’t illuminate, ensure secure wiring and connectors first.
Reconnect them, and if issues persist, test with Test Light, or connect directly to a 12V battery using the provided wire colors.
Contact us if it still doesn’t work for a replacement.
Thank you for your purchase from us! Ride safely!
